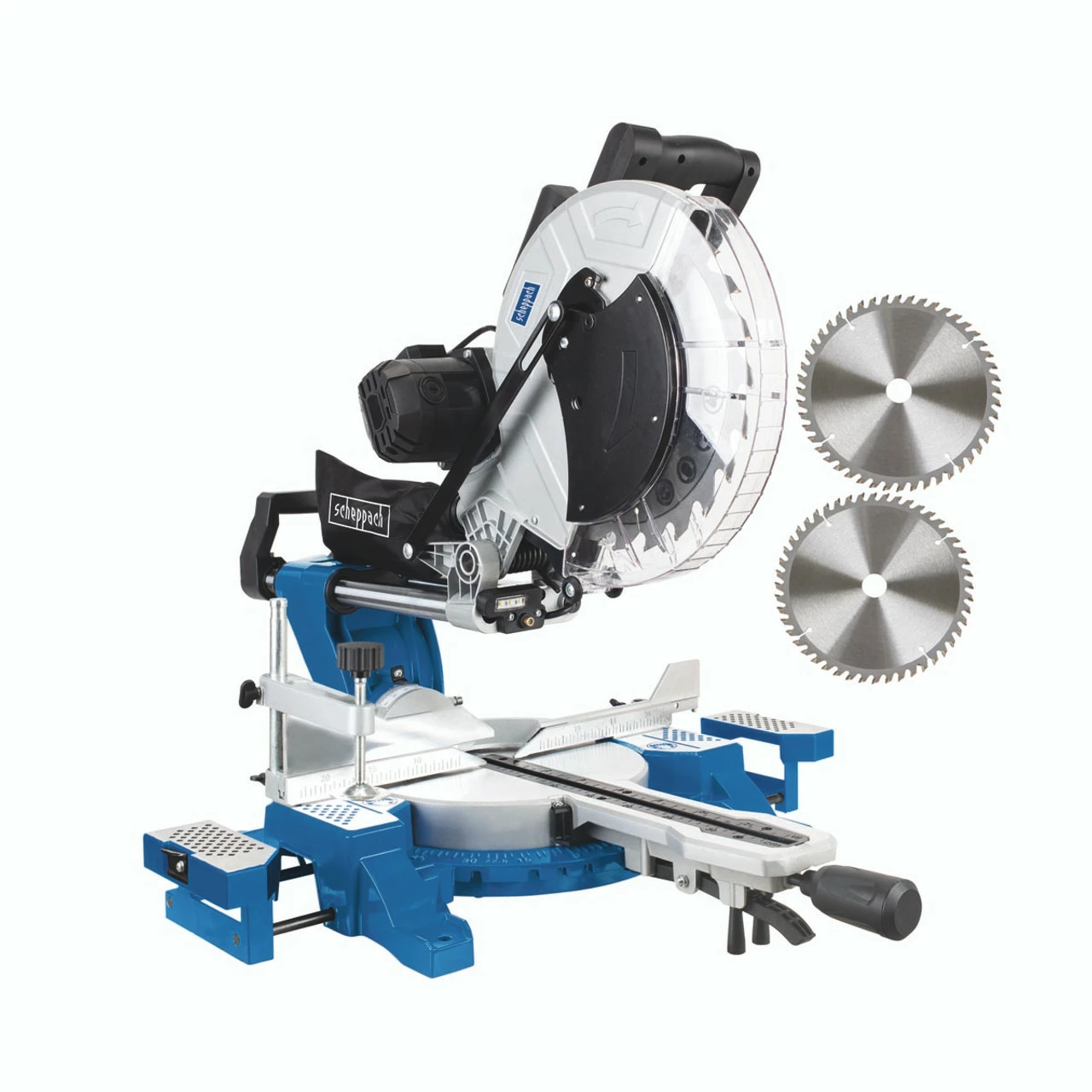

Scheppach HM140L 2000W 305mm DB Sliding Mitre Saw 230V
The Scheppach HM140L is a double bevel sliding mitre saw that offers all round accuracy and performance. It comes with a powerful 2000 W motor and offers an impressive 105 mm cutting depth and 330 mm crosscut facility for cutting wider boards. The blade can be angled to 45Β° both left and right which will allow you to perform mitre cuts, bevel, compound, and double angle cuts. It is supplied with 2 x top quality tct sawblades which will produce precise cuts in all types of materials including wood, processed timbers, and plastic. The Scheppach HM140L is a fantastically priced machine that is ideally suited for larger workshops and professional tradesman needing a precision mitre saw.
HM140L Features:
- Die-cast aluminium sliding mitre saw designed for easy transport
- Powerful 2000 W motor provides user with constant torque
- Precise laser line cutting – Large cross cutting width of 330 mm
- Versatile double bevel sawing head for making a variety of cuts
- Light weight die-cast aluminium construction
- 47Β° Angle adjustment to left and right
- Dual slide rail system with linear bearings allows for accurate operation
- Includes 2 x tct sawblade (24T / 48T)
- 2 x quick release die cast alloy sliding base extensions
HM140L Specification:
- Dimensions L x W x H 890 x 615 x 490 mm
- Blade diameter 305 mm
- Blade speed 3800 rpm
- Bevel Type 2 x 45Β°
- Mitre Capacity 45Β° left Β 45Β° right
- Mitre slots 45-31.6-22.5-0-22.5-31.6-45ΒΊ
- Cross cut at 90Β° 330 x 105 mm
- Mitre cut at 45Β° 230 x 105 mm
- Bevel cut at 45Β° 330 x 60 mm
- Compound cut at 45Β° 230 x 60 mm
- Weight 21 kg
- Motor: 230 V – 50 Hz
- Input 2000 W
What is Included:
Supplied with HM140L : 2 x 305 mm TCT sawblade, dust extraction bag, hold down clamp, 2 x die-cast table extension supports, instructions
