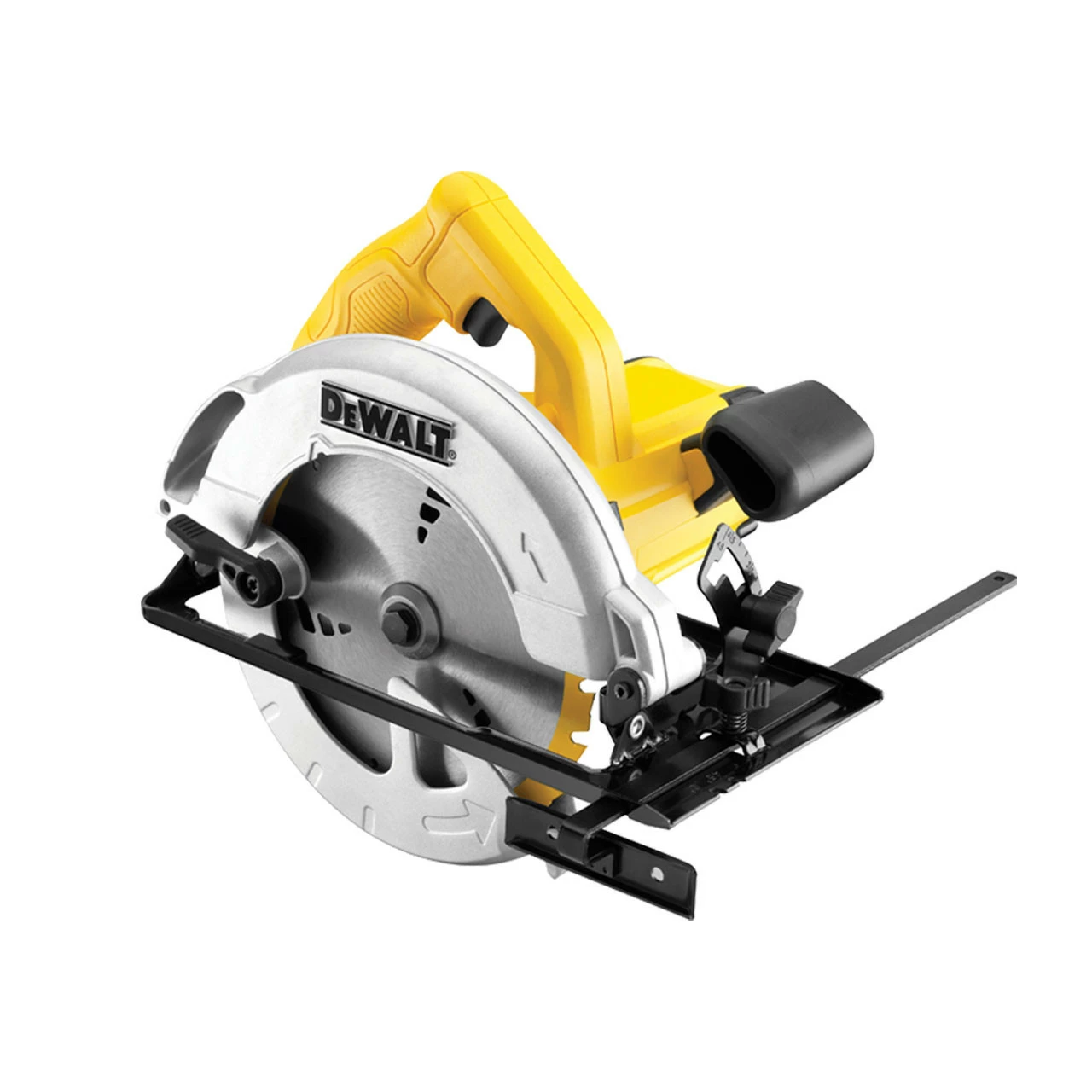

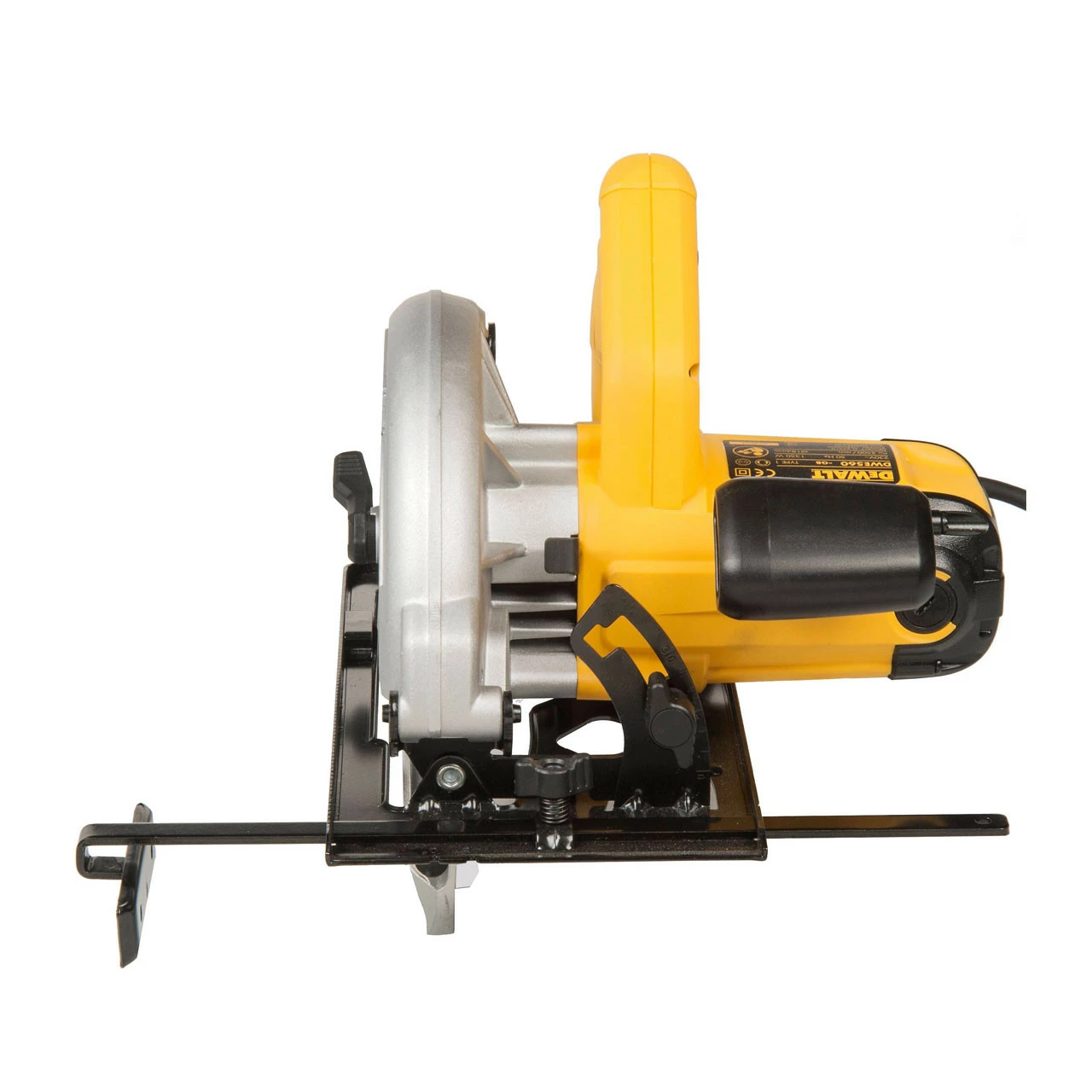

DeWalt DWE560 184mm Corded Circular Saw 850W 240V

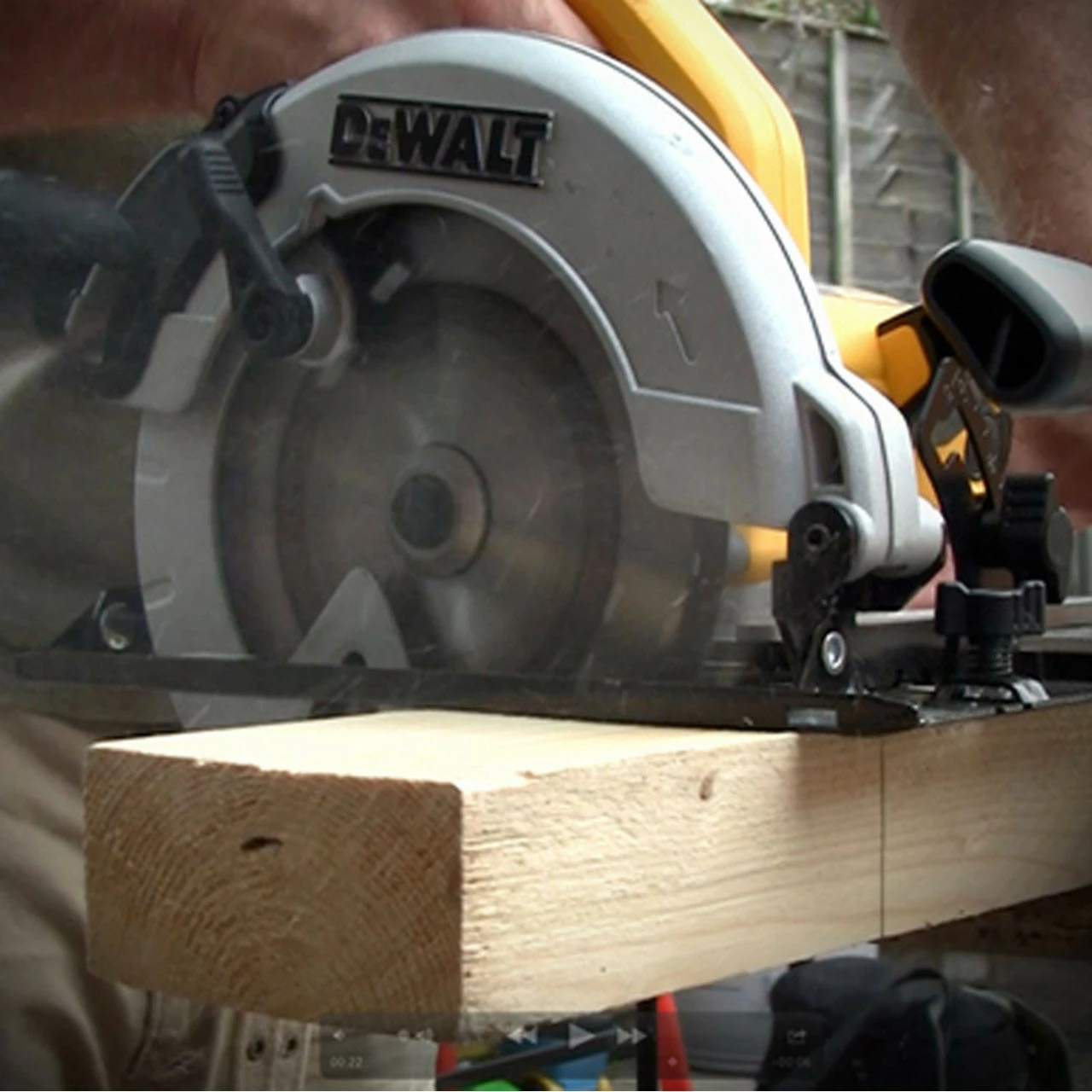

The DeWalt DWE560 circular saw is the corded solution for professionals working on general purpose cutting and ripping applications.Β A high power 1,350W motor gives the DWE560 provides a no load speed of 5,550rpm, while its 16mm bore saw blade can cut up to a depth of 65mm.Β Users can adjust the bevel angle up to 48ΒΊ, allowing for precise, accurate cuts, while the cutting depth can be scaled to a maximum of 65mm at 90ΒΊ.
The DWE560 is fully AIRLOCKTM compatible, either with a dust bag or any DEWALT extractor, ensuring a clear, debris free work surface. A cutaway inner guard allows improved visibility of your cutting line.Β
DWE560 Features:
- Dust blower which clears dust and debris from the cut line
- Efficient dust extraction port minimises airborne dust particles when connected to a dust extraction unit
- Circular saw has direct compatibility with the DeWALT AirLock system for easy, secure connection to extraction hose
DWE560 Specification:
- Weight: 3.7 KG
- No Load Speed: 5500.0rpm
- Blade Diameter: 184mm
- Max Depth Cut at 45ΒΊ:Β 42mmΒ
- Bevel Capacity::Β 48.0 ΒΊ
- Blade Bore: 16mm
- Max. Depth of Cut at 90ΒΊ:Β 65 mm
- Power Source:Β Corded
- Power Input:Β 1350W
- Power Output:Β 850 W
- Length:Β 286 mm
- Height:Β 226 mm
- Hand/Arm Vibration:Β 2.5 m/sΒ²
- Uncertainty K 1 (Vibration):Β 1.5 m/sΒ²
- Sound Pressure:Β 85 dB(A)
- Sound Pressure Uncertainty:Β 2.5 dB(A)
- Sound Power:Β 96 dB(A)
- Sound Power Uncertainty:Β 2.5 dB(A)
What is included:
- 1xΒ DWE560 184mm Corded Circular Saw 850W 240V
- 1x 24 tooth saw blade
- 1x Blade spanner
- 1x Dust Extraction Spout
- 1x Rip fence
